MOBILE COMMUNITY ACCES POINT (MCAP)

It was not just Microsoft that has a mobile community access points, now Indonesia also have it, almost every region has a M-CAP (Community Access Point Mobile) and it's all Depkominfo assistance from the Republic of Indonesia.

MOBILE COMMUNITY Acces Point (MCAP)

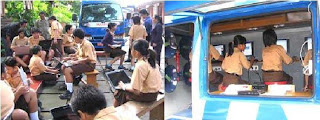

MCAP stands for Mobile Community Access Point. Car mobile information unit to provide facilities and means of utilization of telematics for public internet access for the public, which also can be used as an interactive learning media as well as to service Internet-based services.



Three functions of the MCAP is as follows:
1. Information technology-based learning and communication and Internet access.
2. Access Phone Service (Call shop), and Facsimile.
3. Information dissemination activities Audio Visual.

MCAP facilities are:
a. Computer facilities are connected to the internet (warnet).
b. Facilities Wartel.
c. Facsimile Fasillitas.
d. Digital printers

The purpose of MCAP facilities are as follows:
Increasing interest in studying the understanding of information and communication technology (e-literacy) and disseminate information, science, technology, arts and culture in order to actually broaden the horizon and a global perspective. Extending the use of telematics service, and provide equitable learning opportunities eliterasibagi residents not reached by fixed services.



Empowerment targets Telematics

Intended primarily for youth groups, youth and women, both in school and outside school, especially the residents who do not have access and their own learning resources.

MCAP Technical Specification

MCAP (Mobile Community Access Point) composed of 1 unit car equipped with a computer device connected to the Internet, telecom shops and Facsimile device and audio-visual devices

The technical specifications as follows:

1. Vehicle Specifications

Fill Cylinders: 2771 cc
Fuel: Solar
Maximum speed: 132 Km / Hour
Tank Capacity: 75 Liter

Dimensions:
Wheels Axis Distance: 2490 meters
Overall length: 4590 meters
Overall Width: 1695 meters
Overall Height: 2.30 meters
Minimum Height of Land: 190
Distance Left Right Front Wheel: 1395 meters
Distance Left Right rear wheel: 1375 meters

2. Electrical :
Yamaha EF4000 Generator
Type Brushless, AC Generator
Maximum AC Output 4000 watts
Rated AC Output 3500 watts
1500 KVA APC UPS BR1500i
Output Power Capacity: 1,500 VA - 865 W
Output Power Voltage: 230 V
Input Power Voltage: 175 to 295 V
Cooling
AC Vehicle
Sanden AC Double Blower
Front: Genuine Blower
Rear: 12Volt, 3300 RPM, 530M3/hr
Engine Type Air-Xpro 95 W / Supercoller
Split AC
PK 1 FT-E25JV1 DAIKIN

3. Computers:
Server 1 unit Deskbook Advance Processor Intel Core 2 Duo 2.0 GHz, 1 GB memory, 80 HDD, VGA, LAN, Sound, WiFi, Mouse, Keyboard, LCD 17 "Wide Screen Windows XP Professional OEM.
And, client deskbook 5 unit Advance Processor Intel Core 2 Duo 2.0 GHz, 1 GB Memory, 80 GB HDD, VGA, LAN, Sound, WiFi, Mouse, Keyboard, LCD 17 "Wide Screen Operating System IGOS and Ubuntu Linux.
LAN device
Wireless LAN Unit 1
CDMA Modem Unit 1
Wartel.
Equipment Unit 2 Wartel (2 KBU) Cell2Phone + TUT Quarsar
Unit 1 FaxiSmile Quarsar + CDMA Facsimile Machine and Printer HP Officejet 4300 Series
Printer: Epson LQ300 Dot Matrix +2
CDMA Antenna device
4 Parabolic Antenna CDMA unit 18 dbm
Tool Sound System
1 unit DVD / VCD Player LG
Unit 1 LG Plasma TV 37 '
Active Speaker Unit 1 LG Surround Sound
